A shop with living quarters is a single building that combines a working shop with a full residence. The layouts that succeed separate the two halves for four things: sound, dust and fumes, temperature, and the path you walk between them. The layouts that fail put a bedroom wall against a shop wall and hope for the best.
This is one of the most requested building types we draw, and it is also one of the most frequently drawn badly. Most plans on the market treat it as a house with a big garage attached. It is not. A shop is a working space, and a working space sharing a wall with a bedroom needs to be designed for on purpose.
Here is what actually separates a shop house that works from one that does not.
The four things that have to be separated
Sound. A compressor cycling, an impact wrench, a shop vacuum, or a radio at working volume carries through a single shared wall easily. Mechanical equipment like air compressors can also transmit vibration into a shared slab, which is one reason equipment manufacturers routinely specify vibration isolation mounts or a separate equipment pad rather than a direct connection to the building's structure.
Dust and fumes. Sawdust, welding fumes, paint, and exhaust all move toward whatever space is at lower air pressure. If the living quarters share an air path with the shop, the house gets whatever the shop makes.
Temperature. Most shops are unconditioned or lightly conditioned, and shop doors are open for part of the day. The living quarters need to be insulated from the shop the way they would be from the outdoors, because functionally the shop often behaves like the outdoors.
The entry path. This gets almost no attention and matters daily. If the only route from the shop to the house runs through the kitchen, everything that was on your boots ends up on the kitchen floor.
The buffer zone: the single most important design move
The most effective solution to all four problems at once is a buffer space between the shop and the living quarters, a room that belongs to neither side and absorbs the transition.
The buffer typically holds some combination of a mudroom, a half bath, laundry, mechanical equipment, and storage. It gives you two doors between the shop and the house instead of one, which does more to stop sound and air movement than any single upgraded door or wall assembly.
It also gives you somewhere to take off boots, wash hands, and leave a jacket before entering the house. That single design move solves the daily friction that makes people regret this building type.
If you take nothing else from this article, take the buffer. Two doors, not one.
The layouts that work
Four arrangements come up most often, and each suits a different site and a different use. Fry Design Co.'s Maple 2 plan is a live example of the breezeway layout described below, and the Wallflower plan is a live example of the side-by-side, in-line layout.
Side by side, in line. The most common layout. Shop on one end, house on the other, buffer in the middle. Simple to frame, simple to price, and it gives every room in the house at least one exterior wall. Best for a wide lot.
L shape. The house wing turns off the shop, which puts most of the living space out of the shop's acoustic path entirely and creates a sheltered courtyard between the two. More expensive to frame because of the additional corners and roofline, and worth it on a site where the view or the wind direction argues for it.

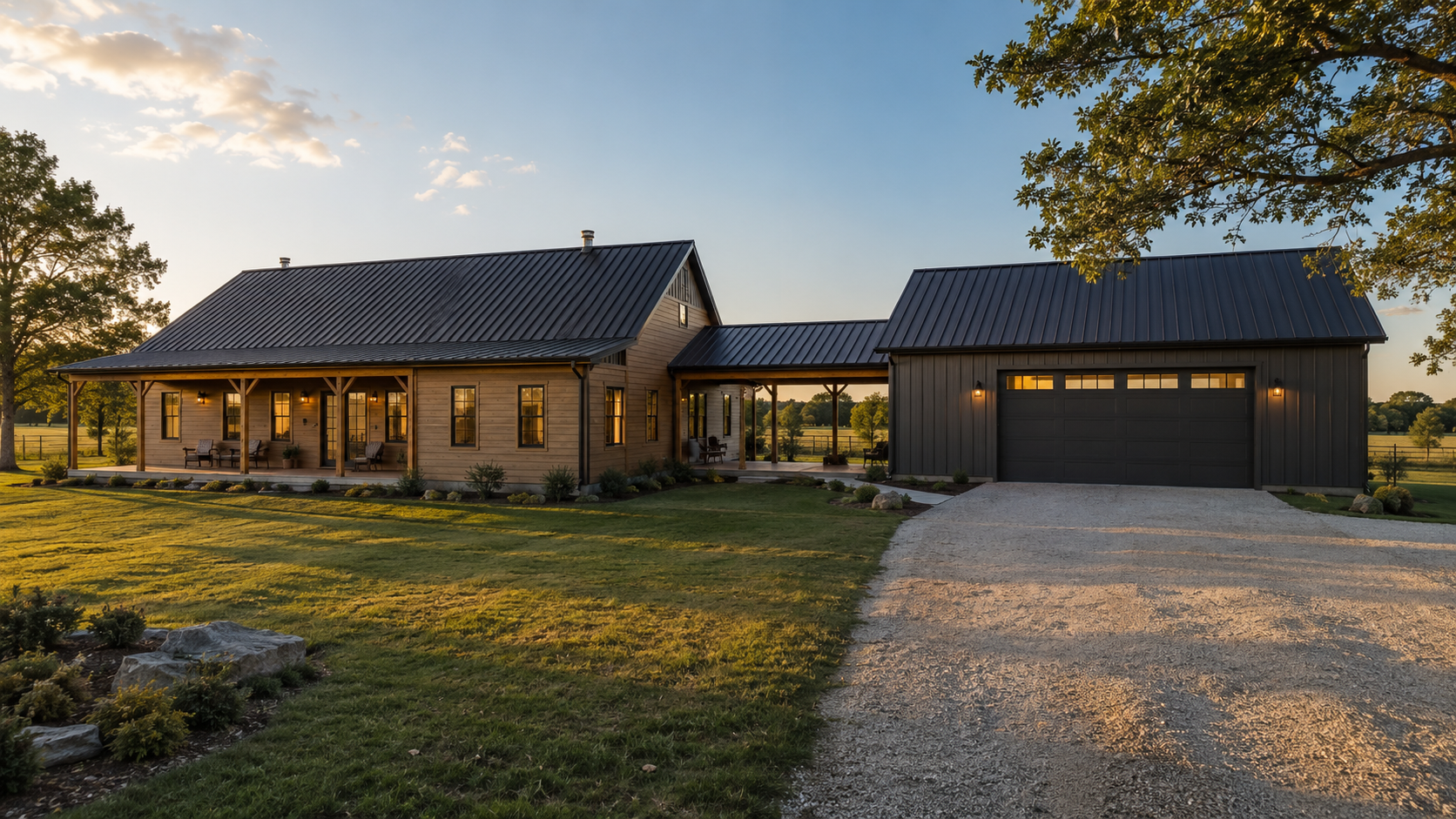

Living quarters at one end with a covered breezeway. A physical gap between the two structures under a shared roof. The best separation of any option because there is no shared wall at all. It costs more in foundation and roof, and it means walking outside in the weather between the two.
Living quarters above the shop. Efficient on a small footprint and common where land is tight. It is also the hardest to get right, because sound travels through a floor assembly more readily than through a wall, and the stair has to land somewhere useful on both levels.
How much shop and how much house?
Size the shop from the work, not from a round number. Start with the largest item that has to fit inside with the door closed, add walking clearance on all sides, then add workbenches and storage along the walls.
The dimension people underestimate most consistently is ceiling height, and it is well documented in the vehicle lift industry: most two-post overhead lifts need roughly 11 to 12 feet of clear ceiling to operate, with 12 feet or more recommended if you plan to lift trucks or vans rather than sedans. Four-post lifts generally need at least 12 feet as well, depending on vehicle height. A shop ceiling sized for a standard 8 or 9 foot residential garage will not accommodate most lifts at all.
On the house side, the mistake runs the opposite direction. People shrink the living quarters to leave room for the shop, then discover the house is too small for the life they actually live in it. If the building is a primary residence, design the house first and let the shop take the remaining length.
The things people undersize
Overhead door width. A door wide enough for a truck is not necessarily wide enough for a truck with mirrors and a trailer being backed in at an angle.
Electrical service. A shop with a welder, a compressor, and a lift draws considerably more power than a house alone does. Size the service for both at the design stage, because upgrading it later means a new panel and possibly a new service drop.
Floor drains and slope. If anything gets washed inside the shop, the slab needs to slope to a drain, and that has to be poured in. It cannot be added afterward.
Water in the shop. A utility sink and a hose bib are inexpensive to rough in during construction and disruptive to add afterward.
Insulation in the shop. Even in an unheated shop, insulation reduces condensation on the underside of a metal roof. The mechanism is straightforward building science: warm, moist air inside the building rises and meets the cooler underside of an uninsulated metal roof, and condenses there once it hits the dew point, which is one of the most common complaints with this building type.
What this building type does to financing and insurance
A building that is part residence and part shop can complicate both the loan and the policy, and this is a widely documented reality across barndominium and mixed-use construction financing, not an edge case. Lenders and appraisers evaluate primarily on the residential portion, and an unusual ratio of shop to house can affect how the property is valued and how comfortable a given lender is with the file. Insurance carriers may also treat the shop differently depending on what happens inside it, particularly if any part of it is used commercially.
Talk to your lender and your insurance agent before the design is finalized, not after. A conversation early can change a dimension. A conversation late changes nothing except your options.
Designing both halves properly
The reason this building type appeals to people is that it puts the work and the home in the same place. The reason it disappoints people is that it puts the work and the home in the same place.
Everything that makes it work is decided on paper: the buffer, the entry path, the wall assemblies, the ceiling heights, and the service sizes. None of it is expensive during design. All of it is expensive afterward.
Fry Design Co. draws barndominium and shop house plans as complete residences with the shop built into the design from the start. The Maple 2 and Wallflower plans both show this in practice, and any Fry Design Co. plan can be modified to fit your lot. See our barndominium floor plans and find a layout that separates the two halves properly.
Frequently asked questions
What is a shop with living quarters?
A shop with living quarters is a single building combining a working shop with a full residence, usually under one roof. It is also called a shop house, a barndominium with a shop, or a barn with living quarters.
How do you keep shop noise out of the living quarters?
The most effective approach is a buffer space between the two with a door on each side, combined with insulated wall assemblies and no shared air path. Equipment that transmits vibration, such as compressors, is typically isolated with dedicated mounts or a separate pad rather than connected directly to the shared structure.
Can you live in a shop with living quarters full time?
Yes, provided the residential portion is designed and permitted as a dwelling and meets local code for occupancy. Requirements vary by county, so confirm with your local building department before you design.
Is it cheaper to build a shop with living quarters than a house and a separate shop?
Combining them under one roof typically reduces foundation and roof cost compared to two separate buildings. Whether that results in a lower total depends on the finish level of the residential portion.
How big should the shop portion be?
Size it from the largest equipment that has to fit inside with the door closed, plus clearance on all sides, plus wall storage and workbench depth. Ceiling height is usually the constraint people get wrong, not floor area. Most two-post vehicle lifts need at least 11 to 12 feet of clear ceiling.
Should the living quarters be beside the shop or above it?
Beside is easier to build and easier to separate acoustically. Above is more efficient on a small footprint but requires more attention to the floor assembly and the stair placement. Site size usually decides it.
Do you need a special permit for a shop with living quarters?
You need whatever permits your jurisdiction requires for a dwelling, which may involve additional review because of the mixed use. Rural counties handle this differently from municipalities, so check locally before design.
